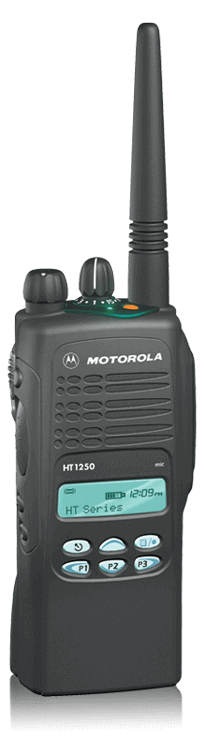

Motorola HT1250 LS+ Portable Radio

Smart and Versatile Radio with LTR ®/PassPort® Trunking

A unique combination of high-level features plus the exceptional versatility of trunking make the HT1250.LS+ portable radio a smart choice for your business communications. The HT1250.LS+ incorporates LTR® trunking capabilities – providing a wider calling range, faster channel access, greater privacy, and higher user and talkgroup capacity. The HT1250.LS+ also offers innovative PassPort® trunking. Ideal for users with growing communications needs, PassPort includes all the advantages of LTR® trunking and much more.

Motorola HT1250 LS+ Features

Programmable Features

• Conventional/LTR®/PassPort®
• System, All Group, Auto Group Scan (Conventional & LTR®)
• Dual Priority Scan (Conventional Operation Only)
• Home Channel Revert (LTR® & PassPort®)
• 12.5/25 kHz Switchable Channel Spacing
• X-Pand™ Companding Technology
• Telephone Interconnect
• Adjustable Power Levels
• Voice Storage

Additional PassPort® Features

• PassPort® Group Scan
• Seamless Roaming
• Automatic Registration/Deregistration (upon power up and power down)
• PTT ID Aliasing & MIN on Display
• Unique ESN (Electronic Serial Number)
• Direct Frequency Assignment
• Home System Lookback
• Selective Radio Inhibit (Decode)
• Roam Request
• Site/MIN View
• Selective Call / Call Alert
• Roam Lock
• Site / Talkgroup Restriction (requires NTS option)
• NTIA Band 9 MHz Rx/Tx Support - UHF Only

LTR® Protocol - MDC1200 Signaling

• Call Alert (Encode/Decode)
• Selective Call (Encode/Decode)
• PTT-ID (Encode/Decode)
• Radio Check (Encode/Decode)

32 Channel Models also include:

• LTR® Protocol - MDC1200 Signaling:
  • Emergency Alert (Encode)
  • Status (Encode)
  • Message (Encode/Decode)
• Conventional Mode - MDC1200 Signaling:
  • Call Alert (Encode/Decode)
  • Selective Call (Encode/Decode)
  • PTT-ID (Encode/Decode)
  • Radio Check (Encode/Decode)
  • Emergency Alert (Encode)
  • Status (Encode)
  • Message (Encode/Decode)
  • Quik Call II (Encode/Decode)

Motorola HT1250 LS+ Applications

Ideal for: Construction, Public Service, and Transportation.

Motorola HT1250 LS+ Models

VHF

• AAH25KDF9DP7AN
  HT1250 LS+ Limited Keypad, 32 Channel, 15/16 Trunk Zones/Talkgroups, 1-5W, 136-174 MHz VHF
• AAH25KDH9DP9AN
  HT1250 LS+ Full Keypad, 32 Channel, 15/16 Trunk Zones/Talkgroups, 1-5W, 136-174 MHz VHF

UHF

• AAH25RDH9DP7AN
  HT1250 LS+ Limited Keypad, 32 Channel, 15/16 Trunk Zones/Talkgroups, 1-4W, 403-470 MHz UHF
• AAH25RDH9DP9AN
  HT1250 LS+ Full Keypad, 32 Channel, 15/16 Trunk Zones/Talkgroups, 1-4W, 403-470 MHz UHF
• AAH25SDH9DP7AN
  HT1250 LS+ Limited Keypad, 32 Channel, 15/16 Trunk Zones/Talkgroups, 1-4W, 450-512 MHz UHF
• AAH25SDH9DP9AN
  HT1250 LS+ Full Keypad, 32 Channel, 15/16 Trunk Zones/Talkgroups, 1-4W, 450-512 MHz VHF

All Motorola HT1250 LS+ Models Include:

• Standard Battery (NiMH, 1500 mAh, 7.5V)
• Standard Charger (120V Single Unit Rapid Rate Charger)
• Standard Antenna (LB / VHF / UHF)
• 2.5" Belt Clip
• 14 Character Alphanumeric Display
• 7 Programmable Buttons
• Two Year Warranty

Motorola HT1250 LS+ Accessories

Motorola original audio accessories enhance your communication system. Remote speaker microphones offer the convenience of communication without having to remove the radio from your belt. Lightweight headsets provide hands-free communication so you can work and communicate simultaneously. Comfortable earpieces mute the radio speaker while channeling the audio directly to your ear, so you can monitor transmissions clearly and privately.
